Detalhes do produto:
Condições de Pagamento e Envio:
|
| Máximo Carga: | 5000kg | Largura da plataforma: | 3.2m |
|---|---|---|---|
| Máximo Externo Comprimento: | 5.3m | Tratamento: | O quadro principal & os suportes são com galvanização do mergulho quente |
| Pintura: | Sopro de areia & pintura da cola Epoxy | ||
| Realçar: | plataforma de carga do guindaste 5000kg,plataforma de carga retrátil do guindaste,plataforma material do elevador 5000kg |
||

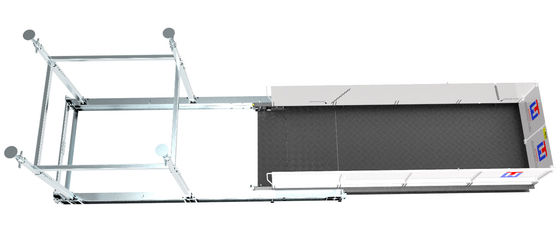

MLP4200-H 5ton Capacity Retractable Loading Bay for Multi-Story Construction Sites

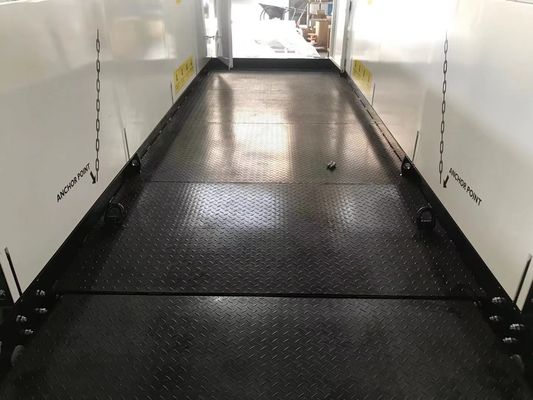

The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes.
If don’t use the platform, retract the deck back. The adjustable support props support the platform between the two floors by transforming the load to the ceiling.
Besides of above parts, there are the deck locking pin to lock the movable deck, side panels with safety lanyard line and door adjustment, front end doors with door lock, safety chain for longer loads. A foot operated leveling ramp is provided to allow the trolley roll up the deck.
Crane Loading Deck Features
1. Easy pull/push system

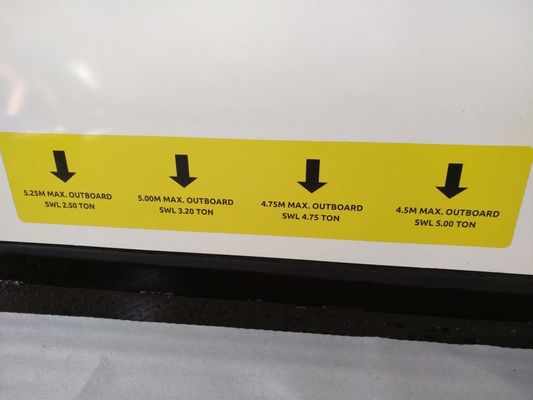

2. Max. outboard length:5.3m
3. Max. load capacity:5ton
4. Platform width: from 4.2m
5. With adjustable props for different floor heights
6. Compact design makes the transportation & installation much easier
7. With easy locking system
8. All pins are with chains
